APPLICATIONS
- Cranes
- Forklifts
- Construction
- Mobile Hydraulics
- Industrial Hydraulics
- Earth Moving
SPECIFICATION
Exceeds EN857 1SC
special features
MSHA Approved

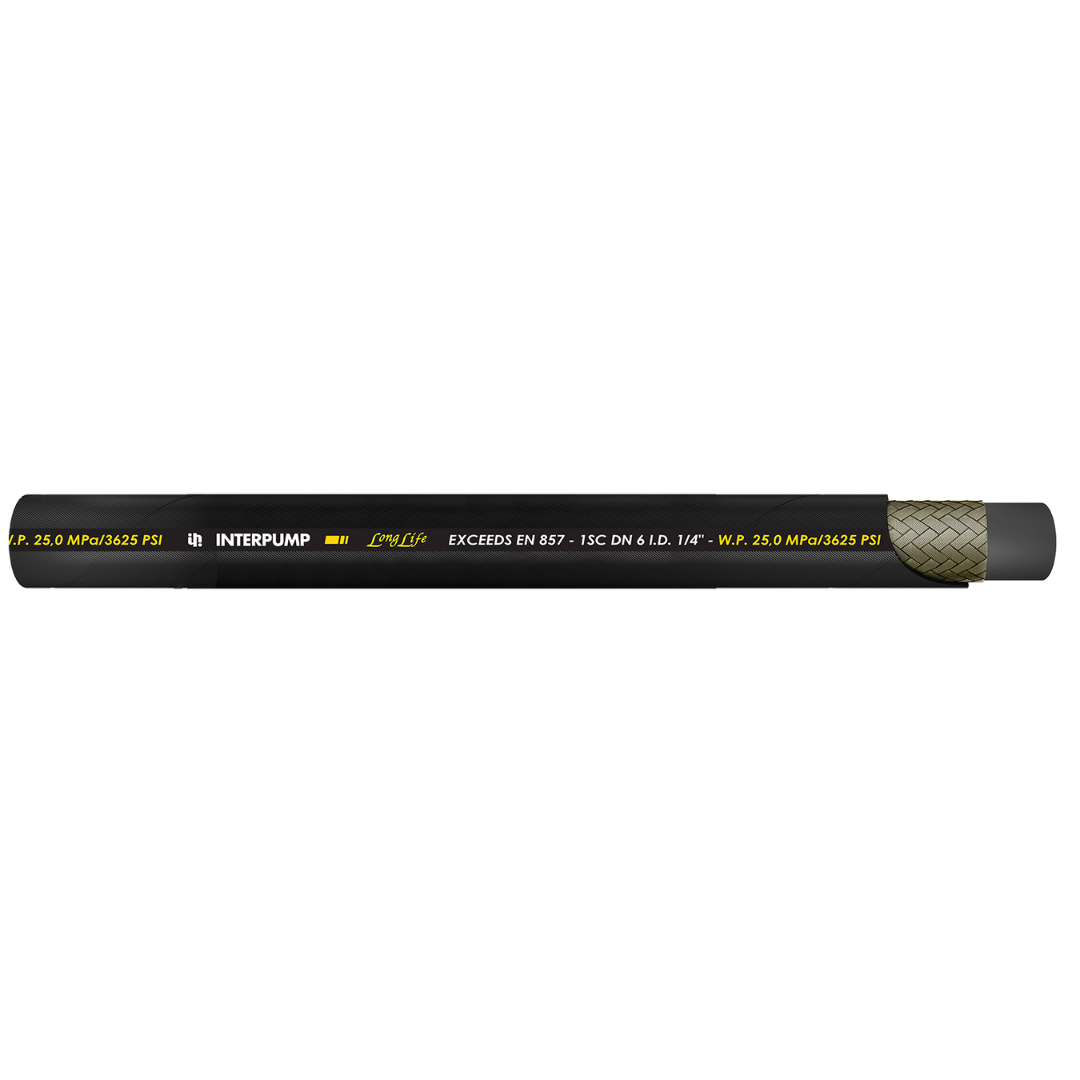

REINFORCEMENT TYPE
1 High-tensile steel wire
APPLICABLE SPECS
Exceeds EN 857 1SC - ISO 112237 1SC
No-Skive hose. High abrasion resistance. Pressure rating exceeds standards. Smooth cover.
Log in to view price
Couldn't load pickup availability
Product details
- Vendor HydraDyneTech
Do you have questions about this product?
INTERNAL HOSE
Synthetic rubber, extruded whole without joints, of uniform thickness.
reinforcement
1 high tensile steel wire braid.
covering
Smooth synthetic rubber, resistant to oils, fuels and atmospheric conditions.
operating temps.
Continuous
-40° F to 248° F (-40° C to 120° C)
Intermittent
-40° F to 275° F (-40° C to 135° C)
Water Based Fluids
-40° F to 158° F (-40° C to 70° C)
Water
32° F to 158° F (0° C to 70° C)
recommended fluid
Mineral and biological oils, glycol-water based, water, lubricants.
compatible fittings
One-piece G Series
| SIZE | ID | OD | MAX WP | MIN BP | MIN BR | WEIGHT | FERRULE | |||||
| in. | mm. | mm. | PSI | BAR | PSI | BAR | in. | mm. | lb. ft. | kg/m | ||
| -4 | 1/4" | 6.4 | 12.3 | 3,625 | 250 | 16,240 | 1,120 | 1.97 | 50 | 0.12 | 0.18 | 001C-04 |
| -5 | 5/16" | 8 | 13.5 | 3,625 | 250 | 14,500 | 1,000 | 2.17 | 55 | 0.14 | 0.21 | 001C-05 |
| -6 | 3/8" | 9.5 | 15.7 | 3,625 | 250 | 14,500 | 1,000 | 2.36 | 60 | 0.17 | 0.25 | 001C-06 |
| -8 | 1/2" | 12.7 | 189 | 2,900 | 200 | 11,600 | 800 | 2.76 | 70 | 0.26 | 0.39 | 001C-08 |
| -10 | 5/8" | 16 | 22.4 | 2,175 | 150 | 8,700 | 600 | 3.54 | 90 | 0.28 | 0.41 | 001C-10 |
| -12 | 3/4" | 19 | 26 | 2,175 | 150 | 8,700 | 600 | 3.94 | 100 | 0.36 | 0.53 | 001C-12 |
| -16 | 1" | 25.4 | 33.7 | 1,595 | 110 | 6,380 | 440 | 7.09 | 180 | 0.5 | 0.74 | 001C-16 |
| -20 | 1 1/4" | 31.8 | 41.1 | 1,450 | 100 | 5,800 | 400 | 8.27 | 210 | 0.75 | 1.11 | 001C-20 |
| -24 | 1 1/2" | 38.1 | 48.6 | 1,305 | 90 | 5,220 | 360 | 11.81 | 300 | 0.93 | 1.39 | 001C-24 |
| -32 | 2" | 50.8 | 61.5 | 1,088 | 75 | 4,350 | 300 | 15.75 | 400 | 1.3 | 1.94 | 001C-32 |
