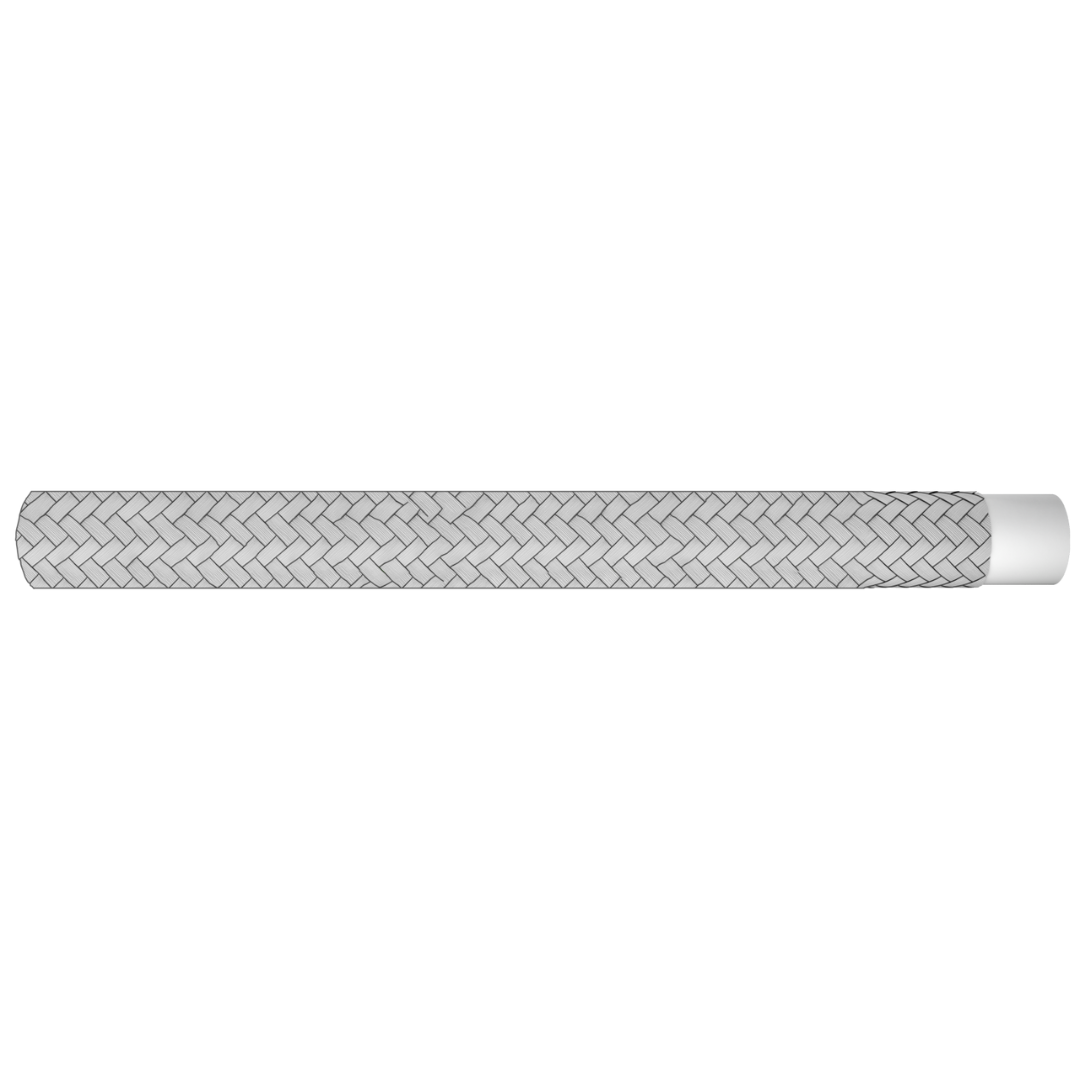

Interpump PTFE TF000T1
Usually ships within 24 hours
SPECIFICATION
SAE 100R14
REINFORCEMENT TYPE
1 High-tensile stainless steel (AISI 304) wire braid
OPERATING TEMPS.
-94° F to 500° F (-70° C to 260° C)
Couldn't load pickup availability
| SIZE | ID | WALL THICKNESS | OD | MAX WP | MIN BP | MIN BR | FERRULE | ||||
| in. | mm. | mm. | mm. | PSI | BAR | PSI | BAR. | in. | mm. | ||
| -3 | 3/16" | 4.8 | 0.7 | 7.4 | 2,900 | 200 | 11,600 | 800 | 1.38 | 35 | PTFE-03 |
| -4 | 1/4" | 6.35 | 0.7 | 9 | 2,538 | 175 | 10,150 | 700 | 1.77 | 45 | PTFE-04 |
| -5 | 5/16" | 7.9 | 0.7 | 10.8 | 2,175 | 150 | 8,700 | 600 | 1.97 | 50 | PTFE-05 |
| -6 | 3/8" | 9.5 | 0.7 | 12.4 | 1,958 | 135 | 7,830 | 540 | 2.17 | 55 | PTFE-06 |
| -8 | 1/2" | 12.7 | 0.7 | 15.7 | 1,740 | 120 | 6,960 | 480 | 2.76 | 70 | PTFE-08 |
| -10 | 5/8" | 15.9 | 0.8 | 19.1 | 1,450 | 100 | 5,800 | 400 | 5.12 | 130 | PTFE-10 |
| -12 | 3/4" | 19 | 0.8 | 22.2 | 1.305 | 90 | 5,220 | 360 | 7.48 | 190 | PTFE-12 |
NOTE: For temperatures over 212 F (100 C), contact customer service.
