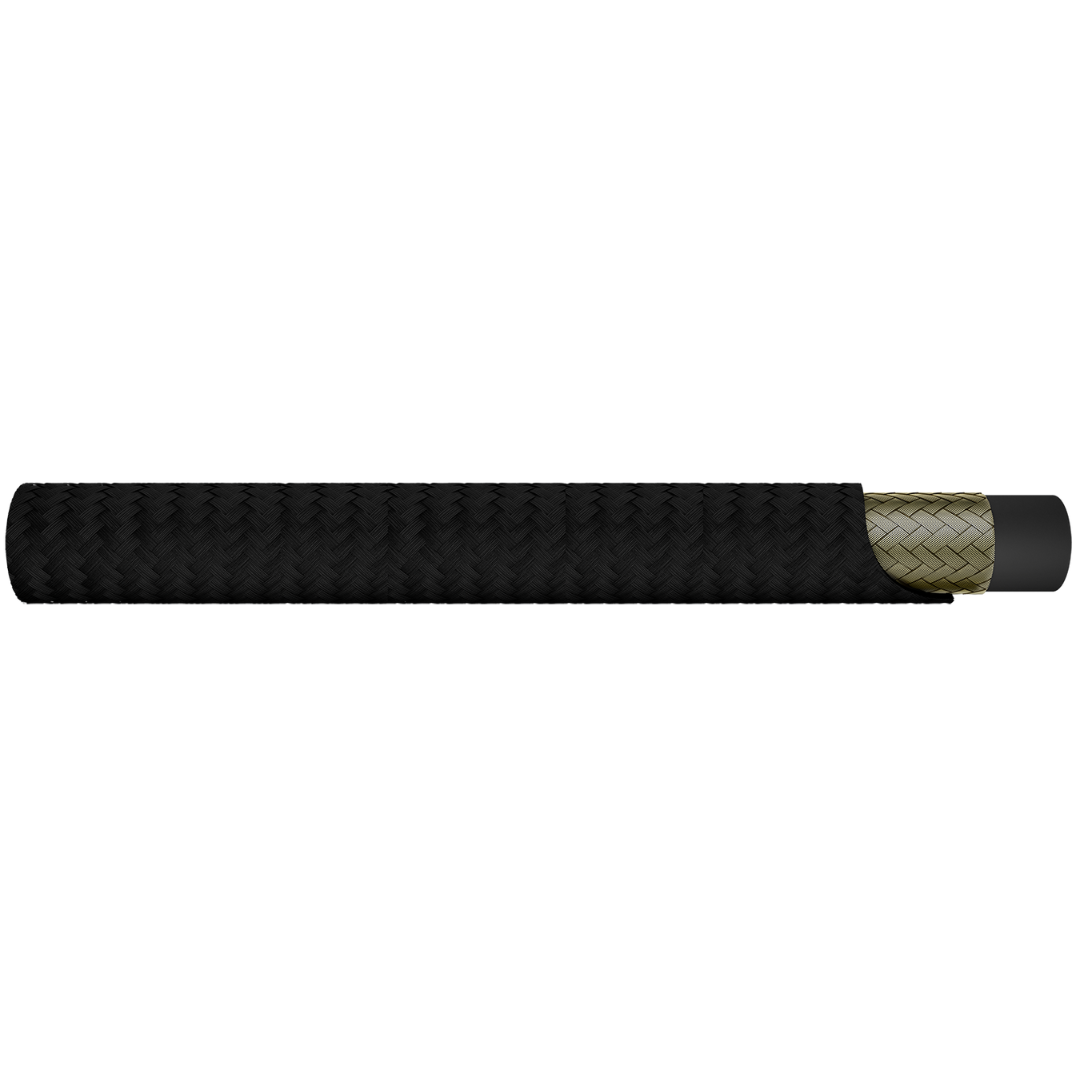

Interpump SAE 100R5 BNDMHR5 BNDM0R5
Usually ships within 24 hours
SPECIFICATION
SAE 100R5
REINFORCEMENT TYPE
1 High-tensile steel wire braid
OPERATING TEMPS.
Continuous
-40° F to 212° F (-40° C to 100° C)
Intermittent
-40° F to 248° F (-40° C to 120° C)
Water Based Fluids
-40° F to 158° F (-40° C to 70° C)
Water
32° F to 158° F (0° C to 70° C)
Couldn't load pickup availability
| SIZE | ID* | OD | MAX WP | MIN BP | MIN BR | WEIGHT | FERRULE | |||||
| in. | mm. | mm. | PSI | BAR | PSI | BAR | in. | mm. | lb. ft. | kg/m | ||
| -4 | 3/16" | 4.8 | 13.2 | 3,000 | 207 | 12,000 | 828 | 3 | 76.2 | 0.16 | 0.15 | 0022-03 |
| -5 | 1/4" | 6.4 | 14.7 | 3,000 | 207 | 12,000 | 828 | 3.38 | 85.85 | 0.18 | 0.27 | 0022-04 |
| -6 | 5/16" | 7.9 | 17.1 | 2,250 | 155 | 9,000 | 620 | 4 | 101.6 | 0.23 | 0.34 | 0022-05 |
| -8 | 13/32" | 10.3 | 19.6 | 2,000 | 138 | 8,000 | 552 | 4.62 | 117.35 | 0.27 | 0.4 | 0022-06 |
| -10 | 1/2" | 12.7 | 23.4 | 1,750 | 121 | 7,000 | 483 | 5.5 | 139.7 | 0.38 | 0.54 | 0022-08 |
| -12 | 5/8" | 15.9 | 27.4 | 1,500 | 103 | 6,000 | 414 | 6.5 | 165.1 | 0.44 | 0.66 | 0022-10 |
| -16 | 7/8" | 22.2 | 31.2 | 800 | 55 | 3,200 | 221 | 7.38 | 187.45 | 0.45 | 0.67 | |
| -20 | 1 1/8" | 28.6 | 38.1 | 625 | 43 | 2,500 | 172 | 9 | 228.6 | 0.56 | 0.84 | |
| -24 | 1 3/8" | 34.9 | 44.5 | 500 | 34 | 2,000 | 138 | 10.5 | 266.7 | 0.64 | 0.95 | |
| -32 | 1 13/16" | 46 | 56.4 | 350 | 24 | 1,400 | 97 | 13.25 | 336.55 | 0.83 | 1.24 | |
| -40 | 2 3/8" | 60.3 | 73.2 | 350 | 24 | 1,400 | 97 | 24 | 609.6 | 1.3 | 1.94 | |
NOTE: Also available in high-temperature (blue cover) version. Use P/N BNDMHR5 to order.
* SAE dash size is the same as the OD of tubing having approximately the same ID as the hose, expressed in 1/16's of an inch.
