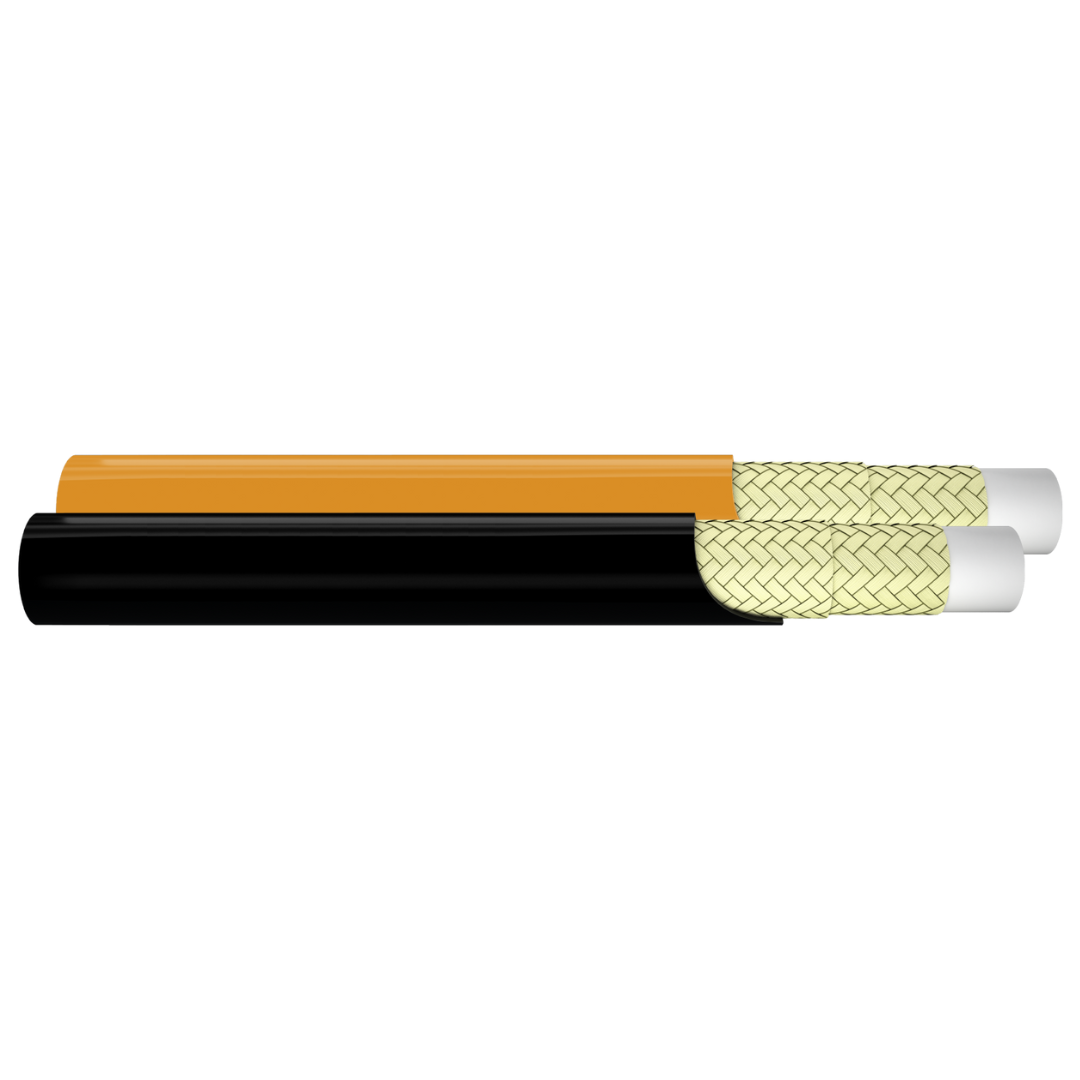

Interpump Thermoplastic TFS0008 TFS0NC8
Usually ships within 24 hours
SPECIFICATION
SAE 100R8
Special features
MSHA Approved
Reinforcement type
2 braids of synthetic fibers
OPERATING TEMPS.
Continuous
-40° F to 212° F (-40° C to 100° C)
Water Based Fluids
-40° F to 158° F (0° C to 70° C)
Couldn't load pickup availability
| SIZE | ID | OD | MAX WP | MIN BP | MIN BR | WEIGHT | FERRULE | |||||
| in. | mm. | mm. | PSI | BAR | PSI | BAR | in. | mm. | lb. ft. | kg/m | ||
| -2 | 1/8" | 4 | 8 | 6,090 | 420 | 24,360 | 1680 | 0.98 | 25 | 0.03 | 0.05 | 0008-02 |
| -3 | 3/16" | 5 | 8.9 | 5,075 | 350 | 20,300 | 1400 | 1.2 | 30 | 0.03 | 0.05 | 0008-03 |
| -4 | 1/4" | 6.5 | 11.5 | 5,075 | 350 | 20,300 | 1400 | 1.97 | 50 | 0.06 | 0.09 | 0008-04 |
| -5 | 5/16" | 8.1 | 13.4 | 4,350 | 300 | 17,400 | 1200 | 2.17 | 55 | 0.07 | 0.11 | 0008-05 |
| -6 | 3/8" | 9.7 | 15.5 | 4,060 | 280 | 16,240 | 1120 | 2.36 | 60 | 0.09 | 0.14 | 0008-06 |
| -8 | 1/2" | 13 | 19.9 | 3,552 | 245 | 14,210 | 980 | 3.15 | 80 | 0.13 | 0.2 | 0008-08 |
| -10 | 5/8" | 16.3 | 23.4 | 2,900 | 200 | 11,600 | 800 | 4.92 | 125 | 0.17 | 0.25 | 0008-10 |
| -12 | 3/4" | 19.5 | 27.1 | 2,392 | 165 | 9,570 | 660 | 5.91 | 150 | 0.22 | 0.32 | 0008-12 |
| -16 | 1" | 25.9 | 34.2 | 2,030 | 140 | 8,120 | 560 | 7.87 | 200 | 0.29 | 0.44 | 0008-16 |
